Post Type A
Post Type A provides reliable fall protection for work on flat roofs. The system complies with the EN 13374 standard (Class A) and has been developed with a focus on local building regulations and weather conditions.
Specifications
-
Height
1000 mm
-
Length
1350 mm, standard supplied with one ballast block.
-
Ballast blocks
In non-enclosing systems, the first and last post are fitted with double ballast blocks for extra stability.
-
Toeboard holder
Optional, specially suited for roofs without an upstanding edge.

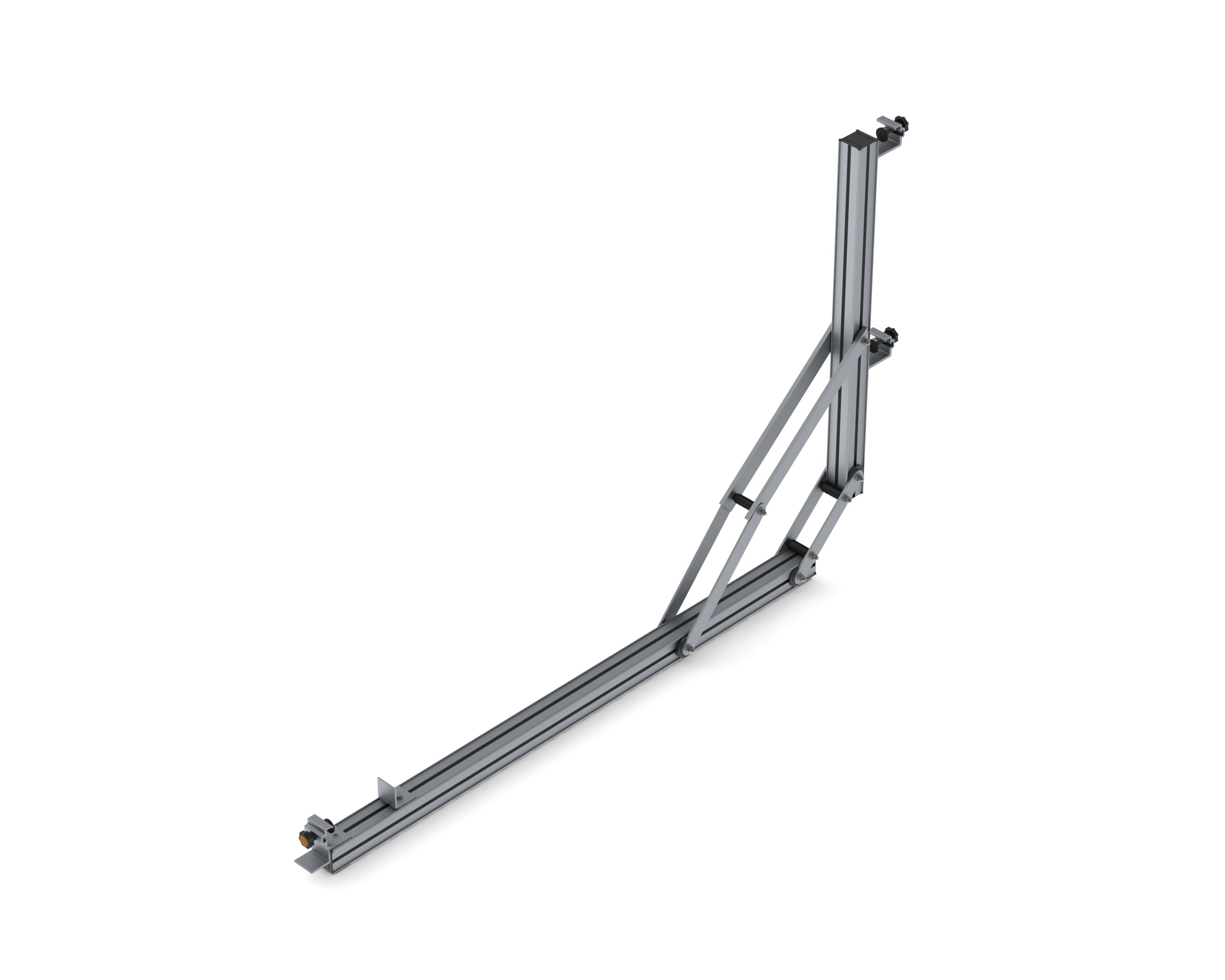

Post Type A of the Dakreling® system is designed for temporary fall protection on flat roofs with a maximum slope of 10°. Its modular design, fold-up and fold-down capability, and aluminium construction offer both flexibility and durability, making it ideal for a wide range of construction projects.
The system complies with EN 13374, Class A, and withstands wind forces up to 5 Beaufort (29-38 km/h), which is essential for safe workplaces in regions with variable weather conditions.
The Dakreling® system can be set up in various configurations:
- Straight line configurations: For local work carried out close to the roof edge, where the location can be safely accessed and only a small section needs to be secured.
- Corner configurations: For situations where protection is required at corners. The corner configurations can be adjusted to any angle as desired.
- U-configurations: For work areas that require additional protection along multiple sides of the roof.
The addition of ballast blocks ensures sufficient stability without damaging the roofing, making Type A a versatile solution for building regulations and safety requirements across various European countries. The optional toe board holder makes this type particularly suitable for roofs without an upstanding edge, while the aluminium construction contributes to a lightweight, easy-to-install system.
Dakreling Brochure (NL)
336 kB, pdf71000005150 Ballastblok hoekstuk (Compleet)
397 kB, pdf71000005100 Ballastblok klembeugel (Compleet)
658 kB, pdf71000001000 Buisbeugel (Compleet)
354 kB, pdf71000001040 Buisbeugel 100 mm tbv Hoekstuk (Compleet)
315 kB, pdf71000002500 Aflsuitdop Zwart (incl schroeven)
204 kB, pdf71000002410 Voetplaat 50 mm (Compleet)
456 kB, pdfPost-Type-B
Post Type B provides reliable fall protection for work on flat roofs. The system complies with EN 13374 (Class A) and has been developed with local building regulations and weather conditions in mind. The 250 mm extensions position the guardrail further outward, allowing safe working right up to the roof edge, even on roofs with wide parapets.
Post-Type-D
Post Type D provides reliable fall protection for work on flat roofs. The system complies with EN 13374 (Class A) and has been developed with local building regulations and weather conditions in mind. The 250 mm hook extension helps prevent unwanted movement caused by external forces.
Post-Type-F
Post Type F is designed for international installation applications, particularly where space is limited and maximum stability is required. Its compact design makes it ideal for installation work on smaller roofs. The system complies with EN 13374 (Class A) and has been developed with local building regulations and weather conditions in mind.
